Overview

Expressions present a powerful tool to derive values from product data. It is useful to create SEO optimized titles and descriptions, as well as derive arbitrary attributes like tax-included prices, tax, shipping, etc.

Expressions compose of tokens (variables that represents context data that is being pulled into the feed like variant price, options, etc), constants (texts, numbers), operators (math operators, string concatenation), function (text case manipulation, date calculation, etc.) and self expressive keywords like "if", "then", "else".

An expression may include one or more tokens. Each token must be enclosed in single quotes '', for example: '{price}', '{product_title}'. The full list of available tokens is provided at the end of this document.

Some examples where expressions can be used:

A custom field representing tax that equal to 21% of product price.
A "Shipping and included" price that equal product price added with a shipping fee for a marketplace that take only shipping and tax included prices.
A condition to include or exclude variant from feed based on its metafield and/or other data

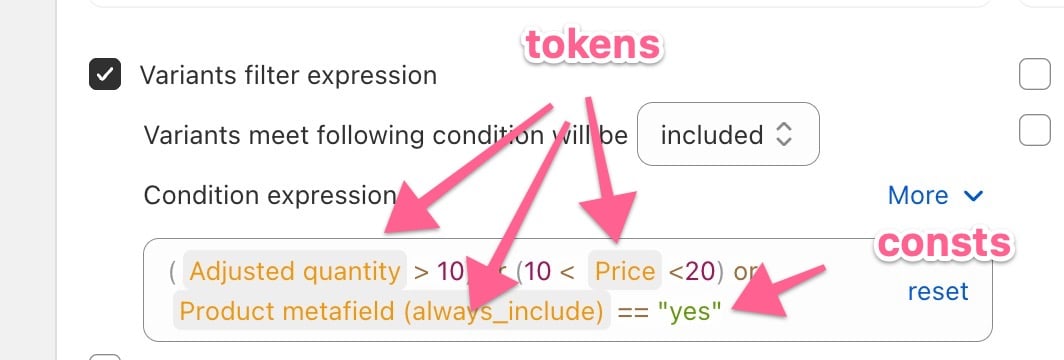

Following screenshot is showing a condition that match when one of following conditions are met:

quantity > 10
price between 10 and 20
has a product metafield with namespace "my_fields" and key "always_include" which has value "yes"

The raw expression would be: (

Types of value

Tokens and constants are returning values which can be of the following types:

Scalar
A single value which can be a number or text. Constant texts are always inside double quotes.
"1" + 2 = "12"
1 + 2 = 3
Object
A complex item that is composed of attributes. For example a variant object could have title, price and quantity attributes among others
{
title: "Red Small",
price: 20,
inventoryQuantity: 2
}
List
A list (array) of items.
1. List of scalar items. Tokens of this type have titles end with "list" e.g: '{tags:}' (Tag list), '{collection_titles}' (Collection title list), '{gallery_images}' (Gallery image list), etc.
2. List of object items. Tokens of this type and their titles end with "objects": '{variant_objects}' (Variant objects), '{variant_image_objects}' (Variant image objects), etc.

Understanding the types of value will let us correctly use the operators and functions to compose expressions. Some operators only work with specific value types. Some behave differently on different operands' types.

"sale" in '{tags:}'

in operator only work with list values

map('{variant_objects}', "title")

map function takes a list of objects and attribute name, return a new list, which is a the attribute value of each of the objects

"1" + 2 = "12"

1 + 2 = 3

+ operator behave differently on different operands' type. If one of the operands is text, then it do a text join. If both are numbers, it perform mathematic plus operation

Use feed preview extensively to make sure that the expressions are working properly.

Editing expression

Editing expression is made easier with some help of the expression editor.

To hide complexity, an expression can be in read-only mode, showing a general description of the expression underneath. Click on 'Edit' button to reveal the expression and edit it.

A token can be added by typing the single quote ('), supported tokens will be listed in a contextual dropdown and one needs to be selected from the list to be added into the expression box. Added tokens have a greyed background and can be changed by clicking on it.

Depending on context, typing the double quote (") may display a list of applicable constants in a dropdown. Added constants will have a greyed background, but with a green color instead of orange like the tokens.

A good example is editing the Google product category. The list includes thousands of categories, so the dropdown is helpful to select the right category.

Examples

String concatenation

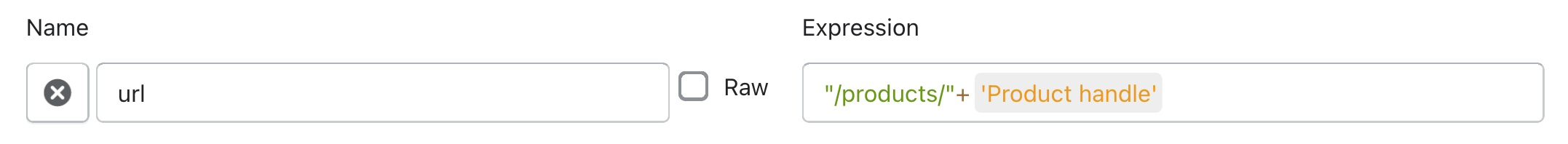

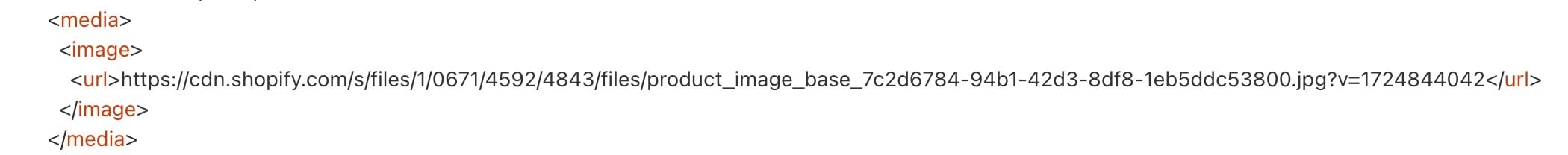

In the following screenshot, the URL is composed of joining a string and the product handle

Regular expression match

Regular expression is really powerful (and complicated) way to check for patterns in string values. Examples include:

If Product description include one of the following words: "shirt", "jean", "child" or "women":
- '{product_description}' ~= "(shirt|jean|child|women)"
If Product tile starts with "Men" or "Boy". This does not include titles that have the word men somewhere else in the sentence:
- '{product_title}' ~= "(^men|^boy)" will match "Men's wear" and "Boy's jeans" but not "T-shirt for men"

"Looking-up" expression

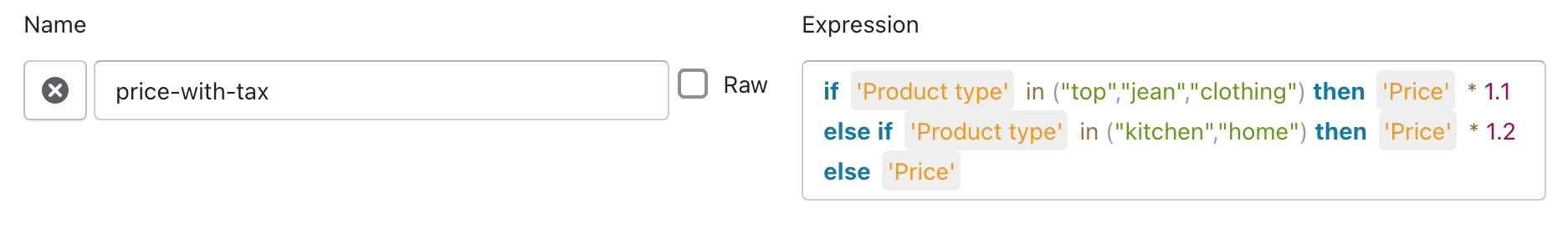

Following screenshot is showing an expression derive a tax-included price value from the value of product type.

If the product is clothing then the price should include a 10% rise for tax
if it's is kitchen ware or household then the tax included is 20%
otherwise the price stay the same

Sometime you may need to specify shipping cost for product according to its price and/or weight

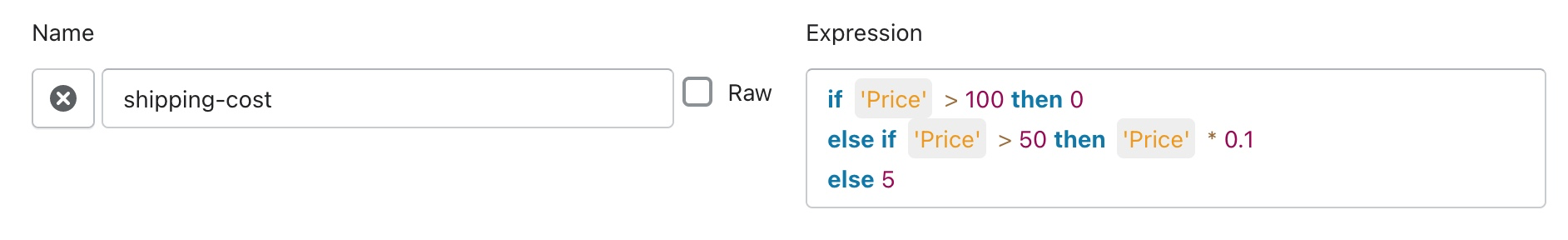

Following is an expression for

If price > 100 shipping is free
if 50 < price < 100 shipping is 10% of price
if price < 50 then shipping is 5

"List returning" expression

Some attributes expect a list of values will have this icon next to their names, , including the product details, product highlights, additional images and promotion ID. Expressions for these attributes should return one of the following forms:

1/ An array in the form of ("value1","value2","value3")

2/ A metafield that contains a list of values. For example additional images could be provided by a metafield that returns a list of files.

3/ (deprecated) A string, which then be processed as below:

- for product details and product highlights, the string will be split into lines and the list of lines will then be used as the list of values. If the content (highlights, details) needs to be in multi-line, use an array as option 1 above.

- for additional images and promotion ID, the string will be split by commas (,)

Option 3 also includes support of text metafields (single line and multi line), whose values will be processed accordingly.

Product detail entries

Product details is a special list which include entries, each composed of section name (optional), attribute name (optional) and attribute value seperated by colons.

Section name (optional):Attribute name (optional):Attribute value

If there is only one element, it would be used as the Attribute value. Attribute name will take the default value of "Detail 1", "Detail 2", etc. For more meaningful attribute names, add them in before the value and separate them with colons

Display:4k
Vendor:Samsung

If the value has to include colons itself, wrap it in quotes

General:Display:"color: green"

Multiple details can be added each on a line. Multiple details would help enrich your product data for better performance. Use a multi-line metafield to store multiple details.

"Money returning" expression

Some attributes expect money amount with currency. For example cost of good sold. The expression should return BOTH the amount and the currency, e.g "12USD" or "3 GBP".

"Measurement returning" expression

These attributes expect a value and a unit. For example unit pricing measure and unit pricing base measure. The expression should return BOTH the value and the unit, e.g. "1.3kg" or "12 floz".

"Boolean" expression

These attributes accept yes/no values. The expression should be either a logic expression, or an expression that return "yes" or "no".

Example of a logic expression

Price > 10 or Quantity < 3

The same logic expression re-written to return "yes"/"no"

if '{price}' > 0 or Quantity < 3 then "yes" else "no"

Metafields and metaobjects

Metafields play important role in storing custom data for Shopify products and variants. Use of metafields in expression allow endless customization for feed attributes. Metaobjects is a special type of metafields that can store structured data. Each metaobject is referenced as a metafield, and composes of fields. Fields can be simple data (text) or even another metaobject, allowing the structure to be nested.

A metafield are often identified with its namespace and key, joining with a dot (.). Example: mm-google-shopping.age_group refers to metafield namespace mm-google-shopping and key age_group.

Metafields are presented in expression as tokens, composed of namespace, key and some metadata that allow the app to properly retrieve the value of the metafield.

Metafields can be added into expressions using several ways:

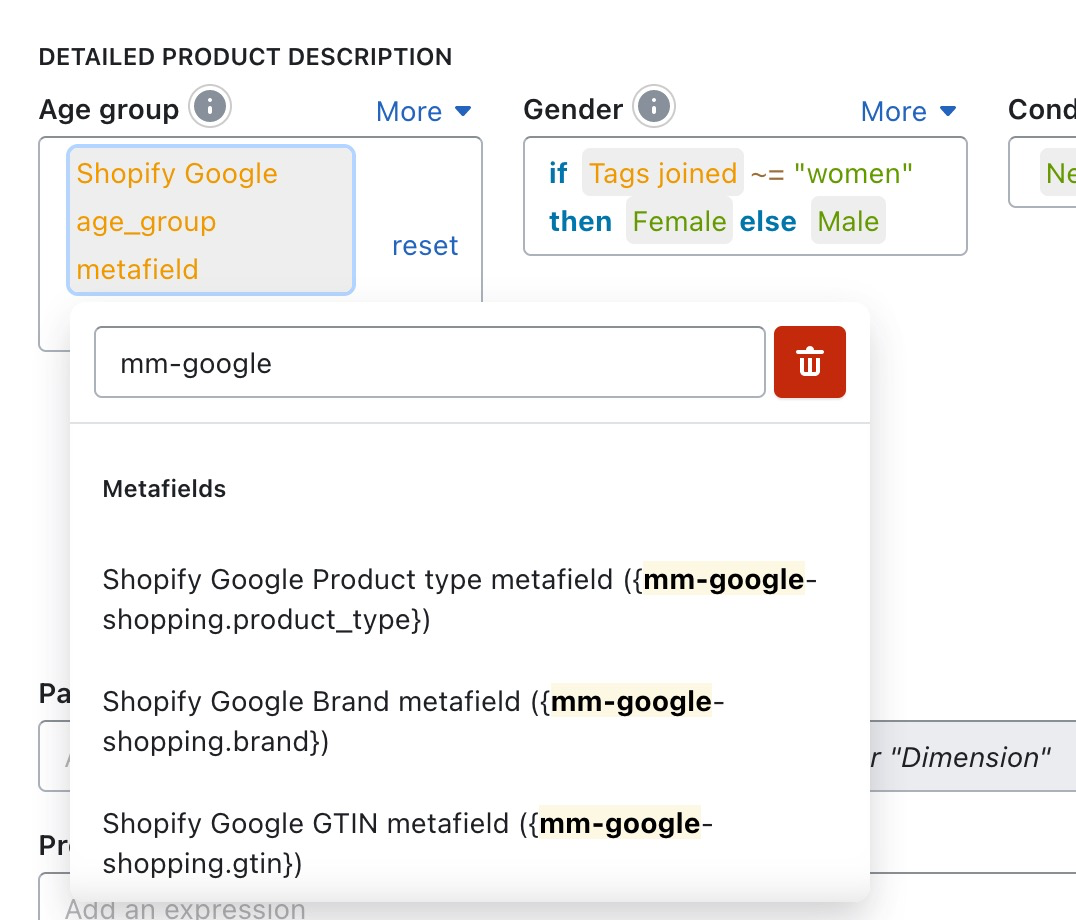

"De-factor" metafields including the Google Shopping metafields. For example mm-google-shopping.age_group. The Google Shopping metafields are supported by Shopify import/export utility to add product with Google Shopping attributes. "De-factor" metafields are listed in the contextual menu in the expression editor, and can be access by typing in the editor

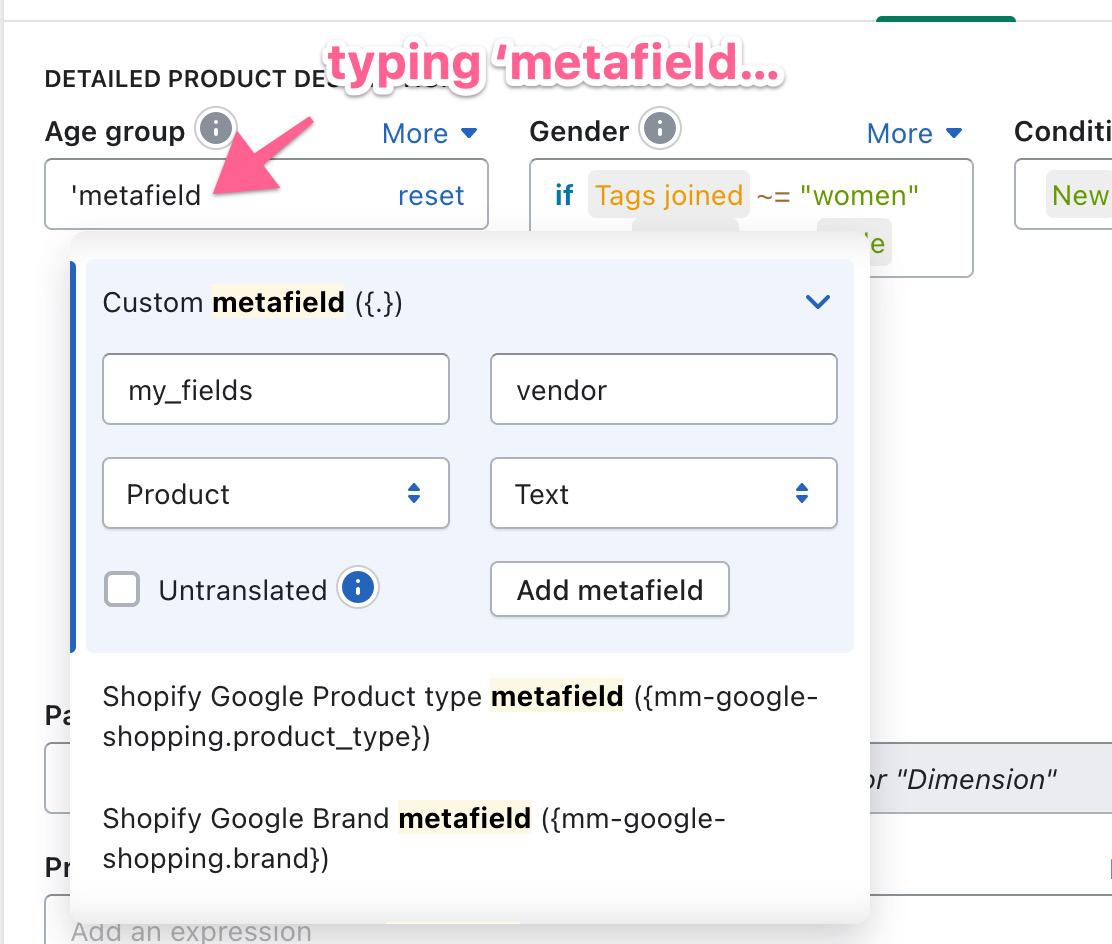

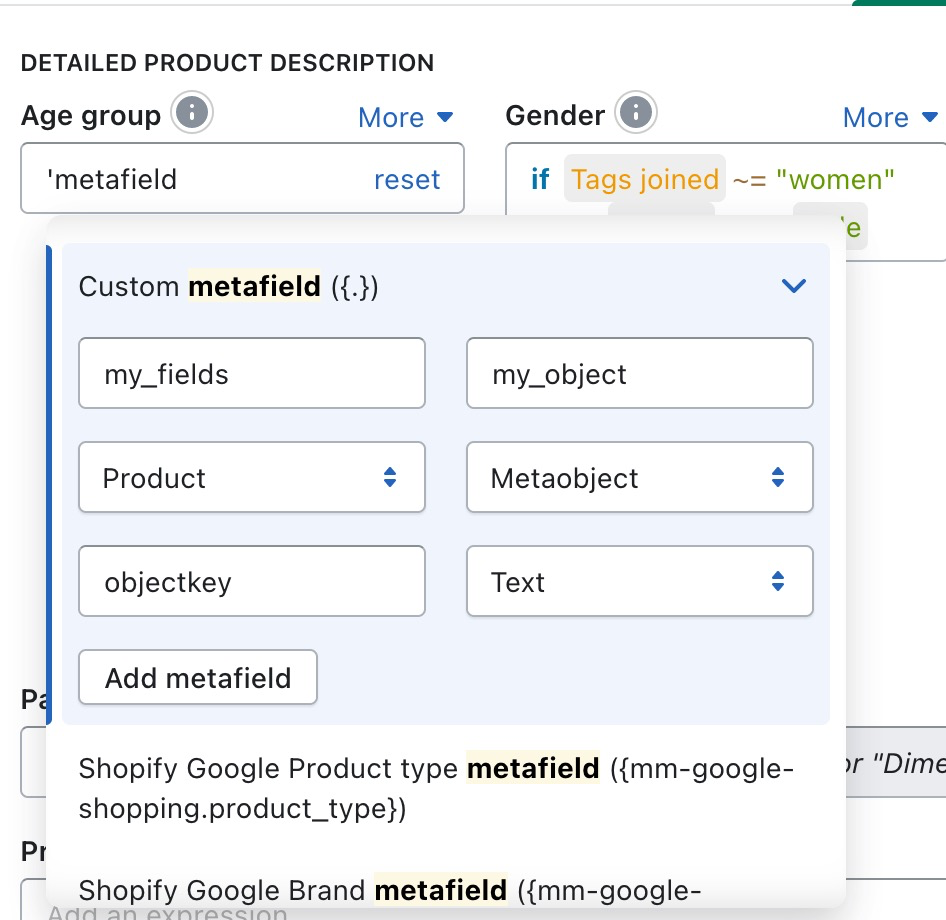

Custom metafield can be added with the metafield form, which can be open from the expression editor by typing in the text 'metafield. Do note that the single quote is the "magic" search trigger for all the tokens in expression

Supported metafield owner types include Product and Variant, which can be selected in the metafield form. Metafield can be of type text, image, image list, JSON or a metaobject. Metaobjects can be nested as many level as needed

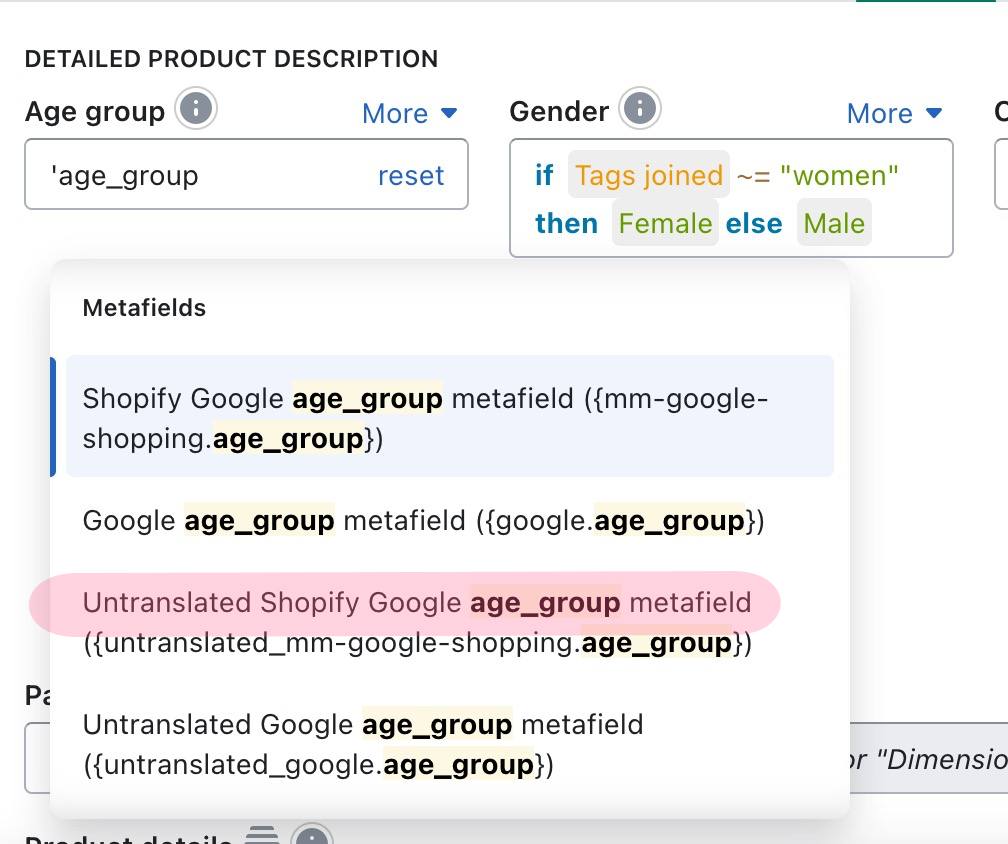

Metafield translation

By default the translatable metafields will be translated into the selected feed language. In the metafield form, check the "Untranslated" to skip translation, which might be desired for metafields that store enumerated fields like [age_group], [gender]. The drop down list of "de-factor" metafields also support "Untranslated" versions of corresponding metafields.

Reference

There are 2 basic types of consts: numbers and strings. Numbers may be floating point or integers. Strings should always be double-quoted. Types get automatically converted when possible, for example:

"1" + 2 == "12"

"12" - 1 == 11

"12" * 1 == 12

Values Description
43, -1.234	Numbers
"hello"	String
" \" \\ "	Escaping of double-quotes and blackslash in string

BEWARE!

Strings must be double-quoted! Single quotes are for tokens.

Numeric arithmetic Description
x + y	Add
x - y	Subtract
x * y	Multiply
x / y	Divide
x ^ y	Power
x mod y	Modulo

BEWARE! Modulo always returns a positive number: -1 mod 3 == 2 .

Comparisons Description
x == y	Equals
x != y	Does not equal
x < y	Less than
x <= y	Less than or equal to
x > y	Greater than
x >= y	Greater than or equal to
x == y <= z	Chained relation, equivalent to (x == y and y <= z)
x ~= y	Regular expression match
x in (a, b, c)	Equivalent to (x == a or x == b or x == c)
x not in (a, b, c)	Equivalent to (x != a and x != b and x != c)

Boolean logic Description
x or y	Boolean or
x and y	Boolean and
not x	Boolean not
if x then y else z	If boolean x is true, return value y, else return z
( x )	Explicit operator precedence

Objects and arrays Description
(a, b, c)	Array
a in b	Array a is a subset of array b
x of y	Property x of object y

Functions Description
abs(x)	Absolute value
ceil(x)	Round floating point up
empty(x)	True if x is `undefined`, `null`, an empty array or an empty string, or an invalid number (result of division by zero, for example)
exists(x)	True unless x is `undefined` or `null`
floor(x)	Round floating point down
log(x)	Natural logarithm
log2(x)	Logarithm base two
log10(x)	Logarithm base ten
max(a, b, c...)	Max value (variable length of args)
min(a, b, c...)	Min value (variable length of args)
round(x)	Round floating point
sqrt(x)	Square root
replace(x, searchRegex, replaceWith, fallback)	Look for all regular expression matches by `searchRegex` in `x`, and replace with `replaceWith`. The optional `fallback` if presented will be returned if no matches is found. Because searchRegex is a regular expression, make sure that special characters are escaped with backslashes. These special characters include .^$*+?()[{\\| . Example (dot is being escaped with backslashes: replace(`Product link`, "emmi-dent\\.de", "emmi-dent.uk")
default(x, fallback1, fallback2, ..., fallbackN)	Look from left to right and return the first non-empty value found. This function is helpful to cascade fallback values for optional expression (non-existing metafield, etc.).
toFixed(x, decimalPlaces)	Converts a number to a string, rounding the number a specified number of decimal.
date(dateValue, deviation, deviationType)	Modify input date by `deviation` amount of time. `deviationType` could be "second", "minute", "hour", "day", "week", "month", "year". To get a date 3 months from now date('{now}', 3, "month") Same time last week date('{now}', -1, "week")
substring(stringValue, start, end?, granularity?)	Return a sub string of the `stringValue` which starts at index `start` and ends up to (but not including) index `end`. First character is at index 0. If `granularity` is set to "word" or "sentence" then indexes are counted in words or sentences accordingly, instead of characters.
case(stringValue, caseType)	Modify the case of `stringValue`. `caseType` takes one of the following values - "low": uncapitalize whole text - "up": capitalize whole text - "sentence": uncapitalize whole text and capitalize the first character - "title": uncapitalize whole text and capitalize the first character of each words
capture(stringValue, captureRegex, defaultValue, matchPos=1, capturePos=1, flags="gsi")	Capture part of the `stringValue` using `captureRegex`. This is useful in cases like: - Extracting colors from product title. The colors are known in advanced (e.g the list of colors is known). Falling back to "white" if no color is found: capture( `Product title`, "\\b(red\|green\|blue)\\b","white") - Extracting colors from product title. The color is the last word in product title: capture( `Product title`, "\\b(\\w+)$") - Extracting the first line from Product HTML description capture( `Product description HTML`, "(.?)(<br>\|$)") Advanced parameters and advanced usage* In edge cases, `captureRegex` can find multiple matches in the `stringValue`, and `captureRegex` can also contain multiple capturing groups, advanced parameters can be used to get to the desired result. `matchPos`: the index of the match to use, starting from 1. If negative then the match is counting backward from the last match. Value of -1 would means the last match, value of -2 means the match before the last match, and so on. The value is default to 1. `capturePos`: the index of the capturing group to use, starting from 1. Default to 1. This is useful in cases when more than 1 capturing groups is needed. `flags`: The regular expression flags. Default to "gsi" which treats `stringValue` as a "single line" where dot (.) would match newlines as well as any other characters. In cases where newlines detection is important for the search then the flags should be changed to "multiline" mode, e.g. "gm". Do note that "g" flag is always on and cannot be turned off.
strlen(stringValue)	Return the length of `stringValue`
split(stringValue, boundary)	Split the `stringValue` by `boundary` and return the array of substrings. `boundary` could take the following values "word": split the `stringValue` into words "sentence": split the `stringValue` into sentences a regex: split the `stringValue` using regular expression
filter(array, regex, inverted?, limit?, property?)	From `array`, return only the items that match ( or does not match if `inverted` is true ) regular expression `regex`. Use the optional `limit` parameter to limit number of return items. If `property` is presented, then the items are regarded as objects and the match is test against the item's `property`
slice(source, start?, end?)	Return a portion of the `source` (a string or an array) selected from `start` to `end` (end not included) where start and end represent the index of (characters or items) in that source. `start` Optional Zero-based index at which to start extraction, converted to an integer. Negative index counts back from the end of the source — if start < 0, start + source.length is used. If start < -source.length or start is omitted, 0 is used. If start >= source.length, nothing is extracted. `end` Optional Zero-based index at which to end extraction, converted to an integer. slice() extracts up to but not including end. Negative index counts back from the end of the source — if end < 0, end + source.length is used. If end < -source.length, 0 is used. If end >= source.length or end is omitted, source.length is used, causing all elements until the end to be extracted. If end is positioned before or at start after normalization, nothing is extracted.
datediff(fromDate, toDate)	Return the number of days between `fromDate` and `toDate`. If `toDate` is before `fromDate` the result is negative.
dateformat(dateValue, format, timezone, locale)	Return the formatted date string in the given format. The result varies by timezone and locale option. `dateValue`. The date (a point in time). It could be a token (e.g. `Now`) or a text. `format`. Optional. If not specified, the value is return in ISO format, UTC `timezone`. Optional. The default timezone is UTC `locale`. Optional. The default locale is en-US Example: `dateformat(Now)` 2024-05-16T10:42:20.972Z `dateformat("2024-05-16T00:00:00+00:00", "EEEE", "America/New_York")` Wednesday `dateformat("2024-05-16T00:00:00+00:00", "EEEE", "Europe/Paris")` Thursday `dateformat("2024-05-16T00:00:00+00:00", "EEEE", "Europe/Paris", "fr")` jeudi
striptags(withTags, xmlMode)	Strip tags from `withTags` and return plain text. If `xmlMode` is set to `true` XML tags are stripped out, otherwise only strip out HTML tags.
join(stringArray, separator?)	Join the items of `stringArray` into a string, separated by `separator` (default to comma "," if not presented).
object(serializeEmptyValue?, key1, value1, key2, value2, ...)	Returning an "object" structure that is mapped into complex xml structure. Deeply nested tags can be added by nesting the object function calls object("media", object("url", Image url)) Add data as attributes instead of nested tags by prefixing the keys with "@" object("@url", Image url, "@medium", "image", "@height", "120", "@width", "120")
map(list, mapper, filter?)	Returning an new list base on input list, performing a `mapper` expression on each of the input items. Returning a list of variant titles, each appended with the word "Nike" map('{variant_objects}', "title + \" Nike\"") Use keyword `self` to refer to the item itself. Helpful when the list is composed of scalar items map('{tags:}', "self + \" store\"") Use optional `filter` expression to return only items that satisfy a condition map('{variant_objects}', "title", "inventoryQuantity>0")
concat(list1, list2)	Returning an new list by appending `list2` to the end of `list1`. Can also take scalar parameters. Returning a tag list plus "Nike" concat('{tags:}', "Nike") Enrich the tag list with titles of the in stock variants concat('{tags:}', map('{variant_objects}', "title", "inventoryQuantity>0")
stringify(object, quote)	Returning a JSON5 representation of the `object`. Use the optional `quote` if provided, otherwise the quote is picked automatically according to JSON5 specification. When converting a list type, the result is suitable for the internal_label of Meta. Submitting tag list as internal_label so items could be filtered by tags in Meta Commerce Manager stringify('{tags:}') Submitting Collection titles as internal_label stringify('{collection_titles}')
urlencode(text)	Returning a URL encoded string urlencode("is this text URL-safe?") is%20this%20text%20URL-safe%3F
urldecode(text)	Decode a URL encoded string

Tokens list

This guide provides a comprehensive list of tokens available in the Rule Editor. These tokens can be used to dynamically insert product, variant, and system data into expressions.

Product Data

Tokens related to the product level.

'{product_id}': Product ID
'{published_at}': Published at
'{created_at}': Created at
'{total_inventory}': Product total inventory
'{local_inventory}': Product local inventory
'{product_title}': Product title
'{has_only_default_variant}': Has only default variant
'{combined_listing_role}': Combined listing role
'{total_variants}': Total variants
'{out_of_stock_variants}': Total out of stock variants
'{untranslated_product_title}': Untranslated product title
'{translated_product_title}': Translated product title
'{product_description}': Product description
'{product_description_html}': Product description HTML
'{untranslated_product_description}': Untranslated product description
'{translated_product_description}': Translated product description
'{product_options}': Product options
'{product_type}': Product type
'{product_status}': Product status
'{untranslated_product_type}': Untranslated product type
'{translated_product_type}': Translated product type
'{standard_type}': Product category
'{google_category}': Mapped Google category
'{tags}': Tags joined
'{tags:}': Tag list
'{vendor}': Vendor
'{template}': Product template
'{untranslated_seo_title}': Untranslated SEO title
'{translated_seo_title}': Translated SEO title
'{seo_title}': SEO title
'{untranslated_seo_description}': Untranslated SEO description
'{translated_seo_description}': Translated SEO description
'{seo_description}': SEO description
'{handle}': Product handle
'{product_image_1}' ... '{product_image_10}': 1st ... 10th product image
'{collection_ids}': Collection ID list
'{collection_titles}': Collection title list
'{untranslated_collection_titles}': Untranslated collection title list
'{translated_collection_titles}': Translated collection title list
'{collection_handles}': Collection handle list
'{untranslated_collection_handles}': Untranslated collection handle list
'{translated_collection_handles}': Translated collection handle list
'{collection_ids:,}': Comma separated collection IDs
'{collection_titles:,}': Comma separated collection titles
'{collection_handles:,}': Comma separated collection handles
'{gallery_images}': Gallery image list
'{gallery_models}': Gallery 3D model list
'{gallery_model_objects}': Gallery 3D model objects
'{gallery_image_objects}': Gallery image objects
'{variant_images}': Variant images
'{variant_image_objects}': Variant image objects
'{variant_objects}': Variant objects
'{unassigned_images}': Unassigned gallery images
'{unassigned_image_objects}': Unassigned image objects
'{gallery_image_1}' ... '{gallery_image_10}': 1st ... 10th gallery image
'{gallery_videos}': Gallery video list
'{gallery_video_1}' ... '{gallery_video_10}': 1st ... 10th gallery video

Variant Data

Tokens related to the specific variant being processed.

'{variant_id}': Variant ID
'{variant_title}': Variant title
'{untranslated_variant_title}': Untranslated variant title
'{translated_variant_title}': Translated variant title
'{price}': Price
'{compare_at_price}': Compare at price
'{quantity}': Adjusted quantity
'{position}': Variant position
'{reverse_position}': Variant reverse position
'{raw_quantity}': Raw quantity
'{availability}': Calculated availability
'{barcode}': Barcode
'{sku}': SKU
'{cogs_with_currency}': Cost per item
'{cogs}': Cost per item (value only)
'{cogs_currency}': Cost per item currency
'{track_inventory}': Track inventory
'{inventory_management}': Inventory management
'{inventory_policy}': Inventory policy
'{assigned_image}': Variant assigned image
'{variant_image}': Variant image (fallback to product image)
'{variant_image_alt}': Variant image alt text
'{variant_image_1}' ... '{variant_image_10}': 1st ... 10th variant image
'{variant_image_object_1}' ... '{variant_image_object_10}': 1st ... 10th variant image object
'{variant_3dmodel_1}' ... '{variant_3dmodel_10}': 1st ... 10th variant 3d model
'{variant_3dmodel_links}': Variant 3d model list
'{additional_image_links}': Additional image list
'{sh_weight}': Product weight
'{sh_weight_unit}': Weight unit
'{up_measurement_with_unit}': Total product measurement
'{up_measurement}': Total product measurement value
'{up_measurement_unit}': Total product measurement unit
'{up_base_measurement_with_unit}': Total base measurement
'{up_base_measurement}': Total base measurement value
'{up_base_measurement_unit}': Total base measurement unit
'{sh_grams}': Product weight (grams)
'{origin_country}': Country of origin
'{shipping_profile}': Shipping profile

Dynamic Variant Tokens

These tokens allow accessing specific option values or pattern-based data.

'{pa_}': Variant option value for the specified option name (e.g., '{pa_Size}', '{pa_Color}').
'{untranslated_pa_}': Untranslated variant option value.
'{pav_#}': Specific option value at position. Use 0 for first, -1 for last (e.g. '{pav_Size#1}').
'{pb_}': Variant option (Base64 encoded name).
'{untranslated_pb_}': Untranslated variant option (Base64 encoded name).

Composed Data

Derived or calculated data useful for feeds.

'{_category}': Composed Google category
'{_customLabel0Template}' ... '{_customLabel4Template}': Composed custom label 0-4
'{link}': Product link
'{collection_data_0}' ... '{collection_data_3}': Custom data 0-3
'{up_amount_with_currency}': Unit price
'{up_amount}': Unit price amount
'{up_currency}': Unit price currency
'{locale}': Feed locale
'{country}': Feed country
'{domain}': Default domain
'{tld}': Default top level domain
'{feed_name}': Feed name
'{sale_price}': Feed sale price
'{normal_price}': Feed regular price
'{feed_cogs}': Feed cost of goods sold

Metafields

Access to Shopify and Google Shopping metafields.

'{.}': Custom metafield
'{mm-google-shopping.product_type}': Shopify Google Product type metafield
'{mm-google-shopping.brand}': Shopify Google Brand metafield
'{mm-google-shopping.gtin}': Shopify Google GTIN metafield
'{mm-google-shopping.mpn}': Shopify Google MPN metafield
'{google.mpn}': Google MPN metafield
'{mm-google-shopping.google_product_category}': Shopify Google category metafield
'{google.google_product_type}': Google category metafield
'{global.description_tag.p}': SEO description
'{global.title_tag.p}': SEO title
'{mm-google-shopping.color}': Shopify Google color metafield
'{mm-google-shopping.condition}': Shopify Google condition metafield
'{google.condition}': Google condition metafield
'{mm-google-shopping.age_group}': Shopify Google age_group metafield
'{google.age_group}': Google age_group metafield
'{mm-google-shopping.gender}': Shopify Google gender metafield
'{google.gender}': Google gender metafield
'{mm-google-shopping.size}': Shopify Google size metafield
'{mm-google-shopping.material}': Shopify Google material metafield
'{mm-google-shopping.pattern}': Shopify Google pattern metafield
'{mm-google-shopping.size_type}': Shopify Google size_type metafield
'{mm-google-shopping.size_system}': Shopify Google size_system metafield
'{mm-google-shopping.adult.p}': Shopify Google adult metafield
'{mm-google-shopping.is_bundle.p}': Shopify Google is_bundle metafield
'{mm-google-shopping.energy_efficiency_class}': Shopify Google energy_efficiency_class metafield
'{mm-google-shopping.custom_label_0}' ... '{mm-google-shopping.custom_label_4}': Shopify Google custom_label 0-4 metafield
'{google.custom_label_0}' ... '{google.custom_label_4}': Google custom_label 0-4 metafield

Note: Untranslated and Translated versions of many metafields are also available (e.g., '{untranslated_mm-google-shopping.color}', '{translated_mm-google-shopping.color}').

Shipping Data

Tokens for shipping calculations.

'{shipping__}': Rate cost for specific country/province.
'{shipping_name__}': Rate name for specific country/province.

Feed Run Context

'{now}': Current time/date.

Lookup Tables

't#<TableName>': Value from the specified lookup table (e.g., 't#MyTable').

Help center
